USB-C power & UART module
IMPR-POW-C-02
Our first commercial module, and the power foundation the RAD stack grew from.
Deployed
Video
Deployed

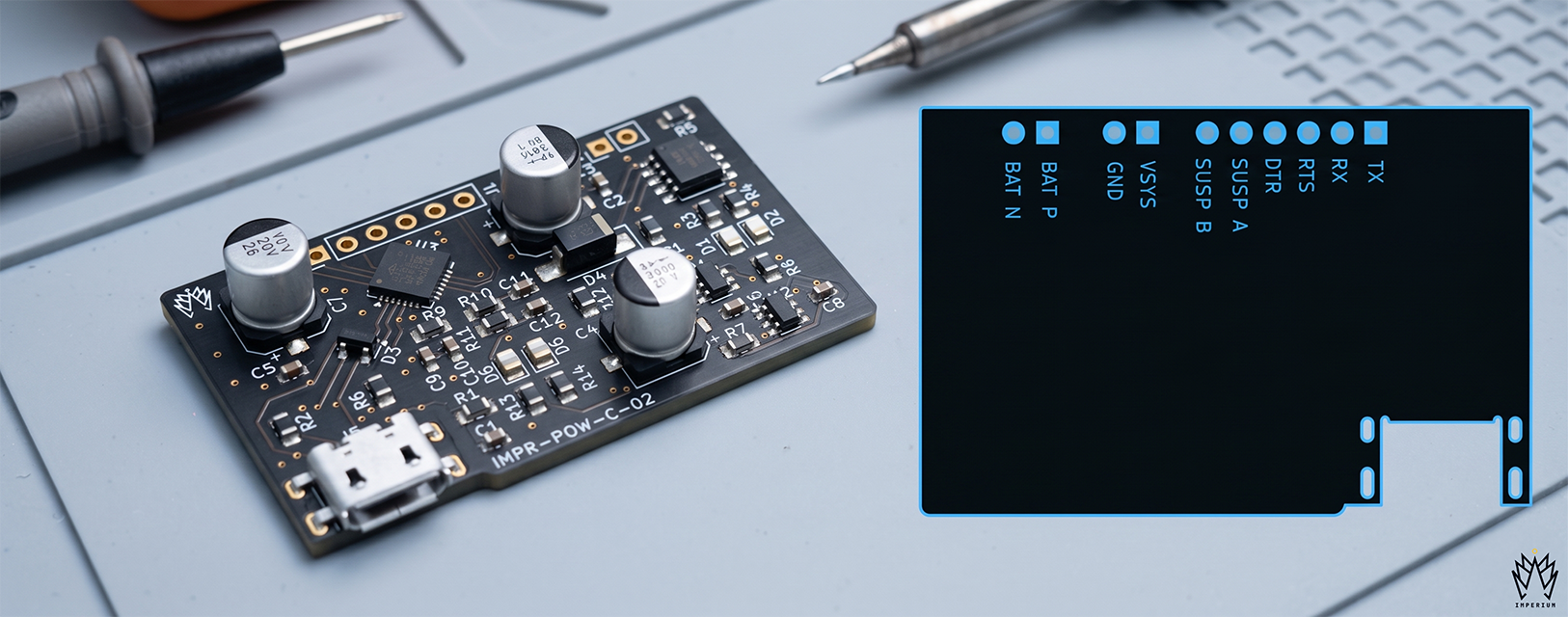

IMPR-POW-C-02 — Top view, production unit Power, charging and serial in 4 × 3 cm
A compact, breadboard-compatible module that combines USB-C power delivery, lithium battery charging with protection, UART bridge, and UPS load balancing into a single 4×3 cm board. Designed for embedded development and IoT prototyping.
Designed & manufactured by Imperium Softworks. Schematic, layout, sourcing, and assembly, all in-house.
How the power path works
From USB-C to a protected rail
Board Telemetry
Render ModeStatic Preview
Board Size4 × 3 cm
PCB Stack-Up2-Layer
AssemblyTHT + SMT
Component Stack
01. CP2102
USB to UART bridge
02. TP4056
Linear charge control
03. DW01A + MOSFET
Battery protection stage
Board Profile
Power InputUSB-C / 5V
Pin Pitch2.54 mm
Load SwitchingUPS Ready
Battery GuardDW01A
CP2102 / TP4056 / DW01A
IMPR-POW-C-02
Breadboard-compatible power, charging, UART, and protection in one module.
- 01 5 V enters through USB-C and powers the load directly.
- 02 The TP4056 charges the cell while the DW01A guards it.
- 03 Unplug USB and the load switches to the battery automatically.
- 04 The CP2102 gives the host serial access for flashing and diagnostics.
Specifications
Power Management
- Power Input
- USB-C (5V)
- Battery Charger IC
- TP4056 Linear Charger
- Battery Protection
- DW01A + Protection MOSFET
- UPS Mode
- Automatic Load Switching
- ESD Protection
- Dedicated Anti-ESD ICs
Communication & Pinout
- UART Bridge
- CP2102 USB-to-UART
- Signal Lines
- TX / RX / RTS / DTR / SUSP
- Power Breakout
- VSYS / GND / BAT+ / BAT−
- Pin Pitch
- 2.54 mm (Breadboard-Compatible)
Form Factor
- Board Dimensions
- 4 × 3 cm
- PCB Stack-up
- 2-Layer
- Component Mounting
- THT + SMT Mixed
- Surface Finish
- HASL Lead-Free
Where it led
Every module feeds the next system.
- Deployed · You are here IMPR-POW-C-02 Charging, protection and serial access.
- Regulator IMPR-POW-R-01 Buck-boost regulation that powers the RAD stack.
- Field tested IMPR-RAD-01 The tactical mesh radio node built on that power work.
Need a power or interface module?
Ask about POW-C-02, or have the team that built it design one for your product. Mutual NDA first; a full proposal with budget and timeline before any work starts.
